2012 CLAAS Combine 750TT

MACHINE DETAILS

• Base Equipment
• HP (header pitch) Feederhouse with Auto Contour
• Axle Rear Powered Axle 2Sp
• Lighting Xenon High End Pkg
• LEXION 750 TERRA TRAC *Lexion 750 Terra Trac Small Grain Version
• FEEDERHOUSE DRIVE *Fixed Speed Feederhouse Drive for Rice & Small Grain CombinesFeederhouse speed not adjustable. No Charge.
• FEEDERHOUSE DUST SUCTION FAN *Dust Suction Fan for HP Feederhouse (B10 0040 or B10 0070)
• THRESHING SYSTEM *Small Grains Threshing SystemN7/18 Universal Concave, 6.5x40 APS grates. Standard on Small Grain Combines. (Not available for rice machines). No Charge.
• THRESHING SYSTEM ACCESSORY *Conversion Kit Corn to Small GrainNot installed. Includes 10mm wire APS grates, preconcave bottom filler plate, 3 concave filler strips and intensive threshing segments.
• ROTOR DRIVE *Variable Speed Rotor Drive for Small Grain and Corn CombinesChange rotor speed from the cab through a wide speed range (360-1050 RPM) to maximize performance and grain quality in all crop conditions. No Charge.
• SEPARATION EQUIPMENT *Flax Rotors with In-cab Rotor Cover Adjustment For Small Grain CombinesSpecialty HD Flax rotors - Hydraulically actuated rotor covers can be used on small grains applications. The rotor covers can be actuated from the cab and allow the operator to adjust the separation area according to harvest con
• CLEANING SYSTEM *3-D Sieve Cleaning SystemWith integrated dynamic slope compensation system for slopes of up to 20%, ventilated pre-cleaning step and fluted turbine fans.
• CHAFF SPREADER ACCESSORY *Chaff Spreader for MAV ChopperNot compatible with G02 0030 Straw Spreader, G02 0064, G02 0065. Requires G06 0030 Hydraulic Drive for Chaff Spreader. Requires G02 0120 MAV Chopper.
• TAILINGS MONITORING *Tailings Monitoring-ElectronicAllows the operator to monitor tailings volume on the CEBIS screen. Requires Q08 0011 QUANTIMETER. No Charge.
• SIEVES *Small Grain SievesShort tooth upper and lower sieves. Standard on Small Grain Combines. No Charge.
• GRAIN HANDLING *Universal Grain Tank 330 Bushel (11,500 L)Universal Wear Grain Handling System standard for small grain combines. No Charge.
• RESIDUE MANAGEMENT *Straw Chopper with MAV® Technology52 rotating knives for chopping straw or corn stalks. Requires E05 0021 Chaff Spreader MAV Chopper & G06 0030 HYD Drive.
• HYDRAULIC DRIVE FOR CHAFF OR STRAW SPREADER *Hydraulic Drive for Chaff Spreader (MAV Chopper)Standard on corn and small grain package combines. Hydraulic Drive for E05 0021 Chaff Spreader. Must be ordered with G02 0120 MAV Chopper. Can not be ordered individually. No Charge.

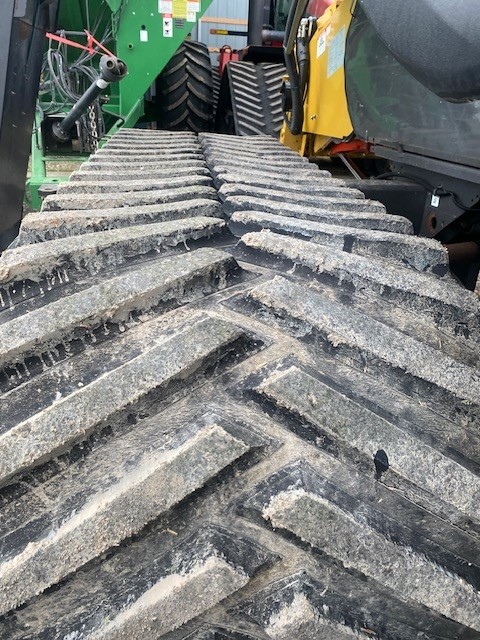

• FRONT AXLE *TERRA TRAC Gen IIIFully suspended integrated track suspension capable of 25 mph. Requires N12 0040. No Charge.
• REAR AXLE *Powered, 2-Speed, Adjustable Rear AxleAdjustable 2-speed powered rear axle with 1885/837 cc hydraulic motor. Requires tire with 335mm diameter lug pattern rim.
• REAR TIRES *28LR26 165 A8 (R1) (D335 Lug Pattern Rim)For use with N08 0434 Powered Rear Axle. High Flotation -- Corn head stalk MAX STOMPERs recomended to protect tires from stubble damage. No Charge.
• ROAD TRAVEL SPEED *25 MPH Road Travel SpeedRequires N04 0593 TERRA TRAC Gen III. No Charge.
• FUEL TANK CAPACITY *210 Gallon Fuel TankIncludes one 210 gallon primary fuel tank. No Charge.
• LIGHTING PACKAGES *Work Light Package, XENON, SidefinderLight equipment with 2 XENON work lights, standard service lights under side panels, rear axle lights recommended for long work days.
• DATA MANAGEMENT ACCESSORIES *Communication ModuleIncludes GPS antenna, receiver and wiring harnesses for connectivity to CLAAS TELEMATICS. Required for Q07 0160, Q07 0204, Q07 0205.
• OPERATOR'S MANUAL *English Operator's ManualNo Charge.
• 1 Season since Inspection
• HP FeederHouse
• Shedded
• EZ-PILOT / FMX Display / Antenna
